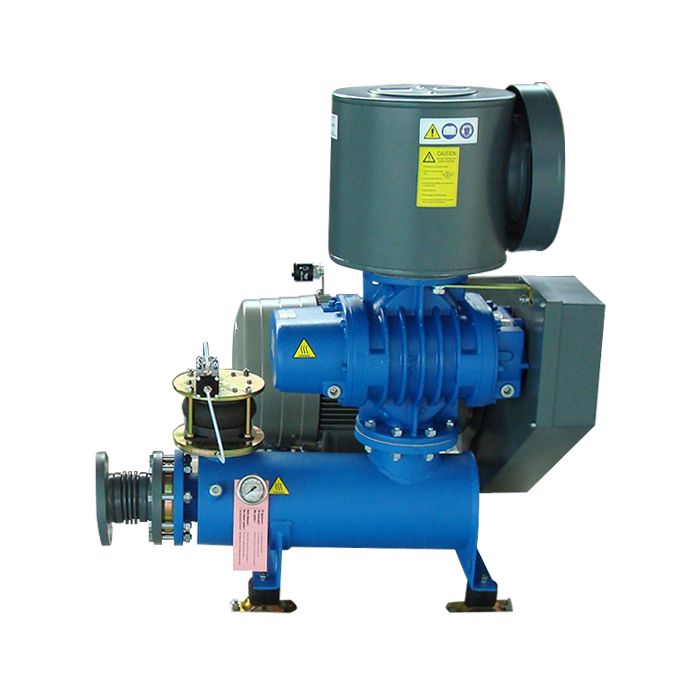

HB Roots Type Blower & Vacuum

The HB roots type bare-shaft blower incorporates the latest blower designs and have the use of oil at both ends.
The casing is constructed of cast iron and ribbed to ensure adequate heat dispersal and increased rigidity. All rotors are dynamically balanced which reduces vibration, wear and tear on the bearings and eliminates stress fractures on the silencers.

Overview

Dynamically Balanced
The HB tri-lobe blower reduces pulsations resulting in less noise and longer bearing life.

Tri-Lobe Rotors
Reduces pulsations resulting in less noise and longer bearing life

Ribbed casing design
Increased surface area ensures efficient heat dispersal across the blower and increases rigidity of the casing.

Dynamically balanced rotors
Reducers vibration minimises overall noise level and increases bearing life.

Labyrinth type seals
Wear-resistant labyrinth seals between the air chamber and lubrication system prevent contamination of the air flow.

Proven Performance
Successfully operating in hundreds of applications worldwide

Features & Benefits

Feature	Benefits
Three-lobe rotors	Reduces pulsations resulting in less noise and longer bearing life
Rotors with carbon/PTFE inserts	Maximises airflow and minimises air slippage
Minimal rotor clearances	Low running temperature extends life of lubrication
Ribbed casing design	Ensure efficient heat dispersal across the blower and increases rigidity of blower
Dynamically balanced rotors	Reduces noise, vibration and increases bearing life
Labyrinth-type sealing	Prevents contamination of airflow
Oil lubrication only	Ease of maintenance
Wide range of models	Air flows up to 20,000m3/hr
Fully tested	Consistent performance
